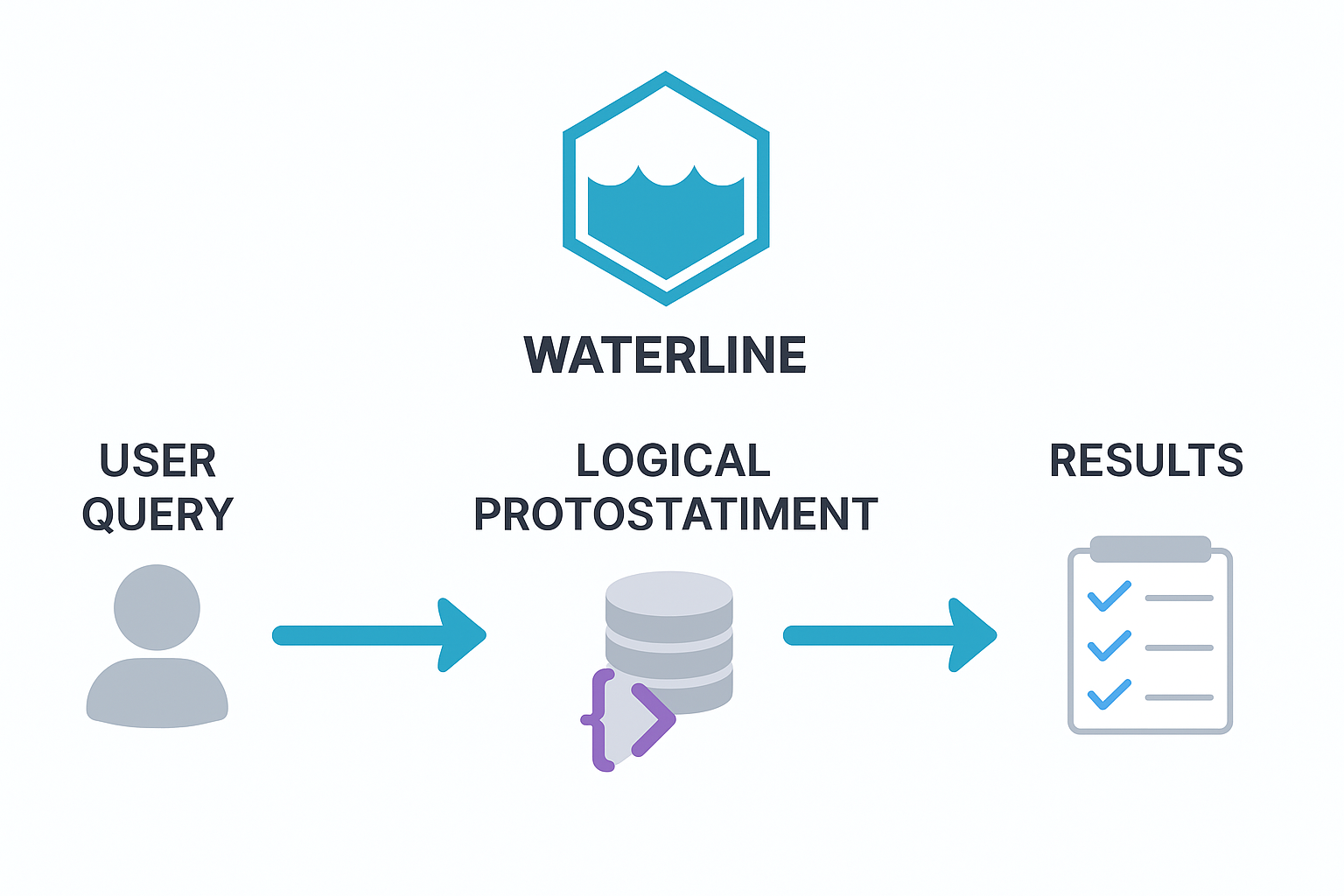

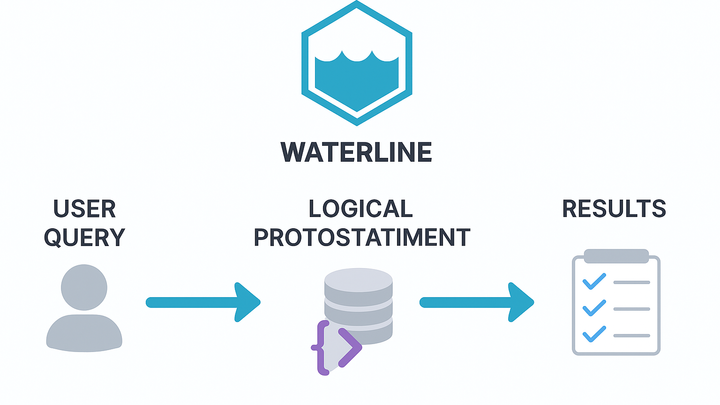

Waterline Query Stages

When you call something like:

User.find({ name: 'John' })
  .populate('pets')
  .sort('age DESC')
  .limit(10);

it might feel like Waterline is just handing your query straight over to the database. But that’s not what happens.

Behind the scenes, Waterline runs your query through a three-stage pipeline before it ever touches the adapter. This ensures consistency, validation, and optimization—so the same query works reliably across different databases.

Let’s walk through these three stages.

Stage 1: User Query (Raw Input)

This is the query exactly as you write it in your application code.

Examples:

// Find users named John
User.find({ name: 'John' });

// Create a new pet
Pet.create({ name: 'Fluffy', type: 'cat' });

// Update a user’s age
User.update({ id: 1 }, { age: 30 });

At this stage:

• The query is intuitive and chainable.
• You work with attributes, not column names.
• It’s model-agnostic, meaning the same syntax works across adapters.

But it’s still raw. It needs to be validated and normalized before it’s safe to execute.

Stage 2: Logical Protostatement

This is where forgeStageTwoQuery() comes in. It transforms raw input into a logical protostatement: a normalized, validated version of your query.

In Waterline, a protostatement is an intermediate, structured representation of your query. It’s not yet ready for the database, but it’s been validated, normalized, and made schema-aware—serving as a bridge between your raw input and the final database query.

What happens here?

• Method validation: checks that you’re using a supported method (find, create, etc.).
• Criteria normalization: ensures where, limit, skip, sort, select, omit are all valid and consistent.
• Schema checks: verifies attributes exist on the model.
• Defaults applied: missing criteria are filled in with sensible defaults.
• Special handling:
  • findOne() is capped at limit: 2.
  • Destructive ops (update, destroy) require explicit where clauses.
• Meta processing: applies flags like skipAllLifecycleCallbacks.

Example: Stage 1 → Stage 2

Raw Input:

User.find({ name: 'John' })
  .populate('pets')
  .sort('age DESC')
  .limit(10);

Stage 2 Protostatement:

{
  method: 'find',
  using: 'user',
  criteria: {
    where: { name: 'John' },
    limit: 10,
    skip: 0,
    sort: [{ age: 'DESC' }],
    select: ['id', 'name', 'age', 'pets']
  },
  populates: {
    pets: {
      where: {},
      limit: 9007199254740991,
      skip: 0,
      sort: [{ id: 'ASC' }],
      select: ['*']
    }
  },
  meta: {}
}

Now the query is normalized and schema-aware.

Stage 3: Physical Query

Once we have a logical protostatement, forgeStageThreeQuery() takes over. Its job: turn the query into something the adapter (and thus the database) can actually understand.

What happens here?

• Attribute → Column mapping: name becomes name_column.
• Model → Table mapping: user becomes user_table.
• Criteria serialization: transforms where clauses into column-based criteria.
• Join construction: builds physical join definitions for associations.
• Optimization: removes logical-only clauses (like omit), expands select: ['*'] into real columns.

Example: Stage 2 → Stage 3

Stage 2 Protostatement:

{
  method: 'find',
  using: 'user',
  criteria: {
    where: { name: 'John' },
    limit: 10,
    sort: [{ age: 'DESC' }]
  }
}

Stage 3 Physical Query:

{
  method: 'find',
  using: 'user_table',
  criteria: {
    where: { name_column: 'John' },
    limit: 10,
    sort: [{ age_column: 'DESC' }],
    select: ['id_column', 'name_column', 'age_column']
  },
  joins: []
}

Now we have a database-ready query to hand off to the adapter.

Post-Processing: Results Coming Back

After the adapter runs the Stage 3 query, Waterline isn’t done. The raw database results need to be transformed back into the format your app expects.

This is where helpers like helpFind() and processAllRecords() step in:

• Unserialize columns: convert name_column back into name.
• Merge associations: stitch together populated data.
• Validate results: ensure schema compliance, primary keys, timestamps, etc.

The end result? Clean, validated records that match your model definition.

Why These Stages Matter

Waterline’s query pipeline provides some serious advantages:

• Consistency: You write one query language, it works everywhere.
• Reliability: Invalid queries are caught early.
• Flexibility: Adapters only worry about Stage 3.
• Performance: Queries are optimized before hitting the database.

This staged approach is the secret sauce that lets Waterline support multiple databases with a single API.

Example: Complete Flow

// Stage 1: Raw Input
User.find({ name: 'John' })
  .populate('pets')
  .limit(5);

// Stage 2: Logical Protostatement
{
  method: 'find',
  using: 'user',
  criteria: { where: { name: 'John' }, limit: 5 },
  populates: { pets: { select: ['*'] } }
}

// Stage 3: Physical Query
{
  method: 'find',
  using: 'user_table',
  criteria: { where: { name_column: 'John' }, limit: 5 },
  joins: [/* pets join */]
}

// Post-Processing: Results
[
  { id: 1, name: 'John', pets: [{ id: 10, name: 'Fluffy' }] }
]

Wrapping Up

Every Waterline query goes through three key stages:

1. Raw user input
2. Logical protostatement
3. Physical query

And after execution, results are post-processed back into model-friendly records.

This pipeline is what makes Waterline powerful, consistent, and database-agnostic.
